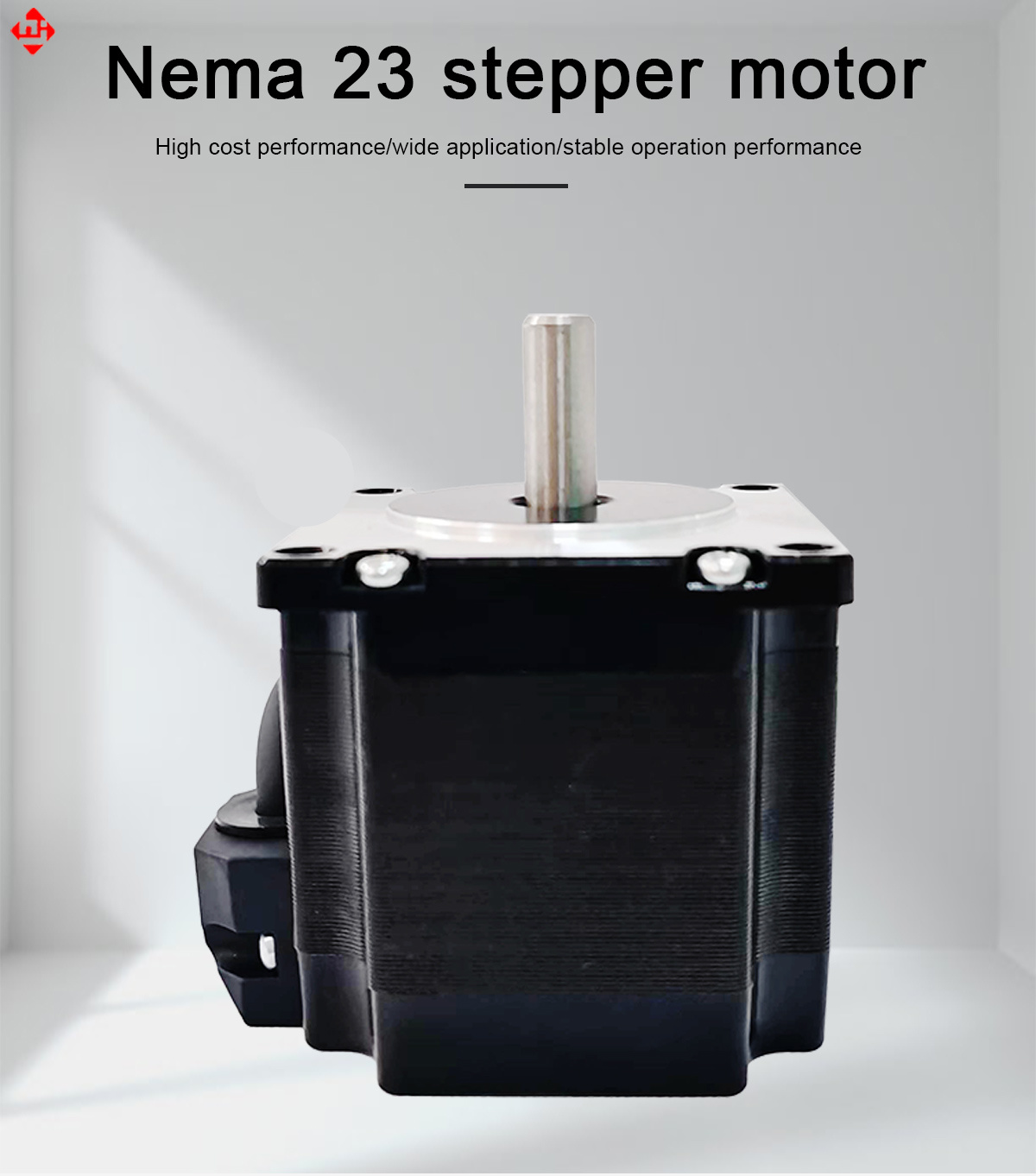

NEMA 23 STEPPER MOTORS unipolar 1.8deg 0.6Nm(84.97oz.in) 0.44A 11.88V 6 wires
Working Environment：-25°C~ +55°C
Insulation Resistance：100Ωmin,500VDC
Axial Clearance：0.08Max
Radial Runout：0.02Max
You can customize your exclusive hybrid stepper motor according totorque retention，moment of inertia， and size as required.
Temperature Rising：85°CMax
Dielectric Strength：B
57BYGH Motors

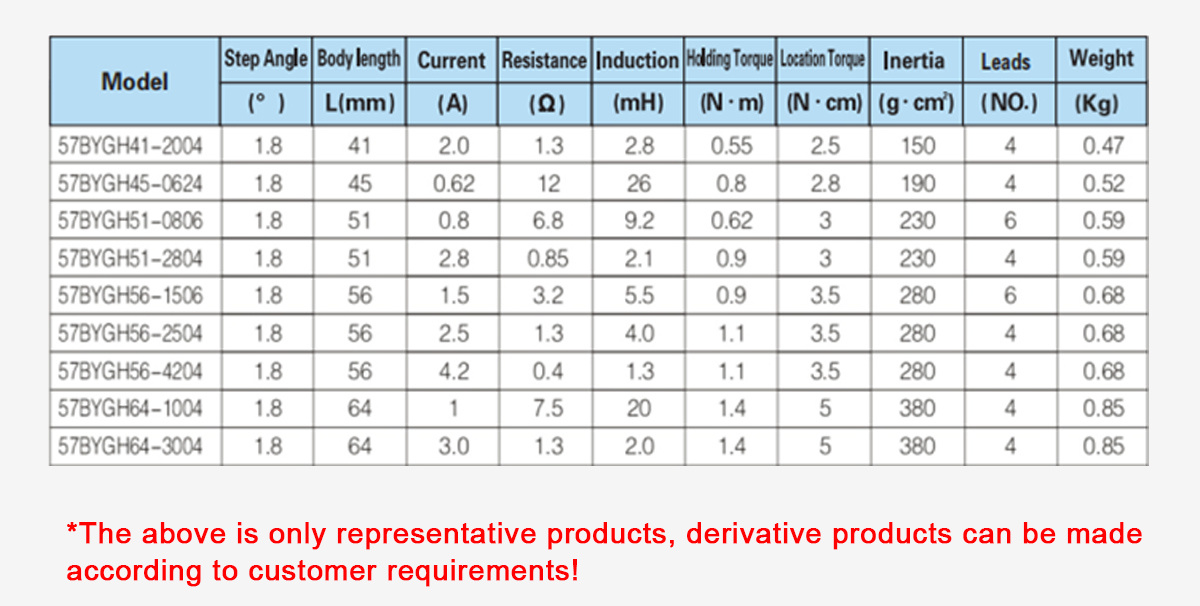

Electrical specifications
| Model | Pace Angle | Fuselage Length | Current | Resistors | Inductors | Static Moment | Positioning Torque | Rotational Inertia | Number of lead wires | Weight |
| (°) | L(mm) | (A) | (Ω) | (mH) | (N·m) | (N·cm) | (g·c㎡) | (NO.) | (Kg) | |
| 57BYGH41-0604 | 1.8 | 41 | 0.6 | 10 | 22 | 0.55 | 2.5 | 150 | 4 | 0.47 |
| 57BYGH41-2004 | 1.8 | 41 | 2.0 | 1.3 | 2.8 | 0.55 | 2.5 | 150 | 4 | 0.47 |
| 57BYGH45-0624 | 1.8 | 45 | 0.62 | 12 | 26 | 0.8 | 2.8 | 190 | 4 | 0.52 |
| 57BYGH51-0806 | 1.8 | 51 | 0.8 | 6.8 | 9.2 | 0.62 | 3 | 230 | 6 | 0.59 |
| 57BYGH51-2804 | 1.8 | 51 | 2.8 | 0.85 | 2.1 | 0.9 | 3 | 230 | 4 | 0.59 |
| 57BYGH56-1506 | 1.8 | 56 | 1.5 | 3.2 | 5.5 | 0.9 | 3.5 | 280 | 6 | 0.68 |
| 57BYGH56-2504 | 1.8 | 56 | 2.5 | 1.3 | 4.0 | 1.1 | 3.5 | 280 | 4 | 0.68 |
| 57BYGH56-4204 | 1.8 | 56 | 4.2 | 0.4 | 1.3 | 1.1 | 3.5 | 280 | 4 | 0.68 |
| 57BYGH64-1004 | 1.8 | 64 | 1 | 7.5 | 20 | 1.4 | 5 | 380 | 4 | 0.85 |
| 57BYGH64-3004 | 1.8 | 64 | 3.0 | 1.3 | 2.0 | 1.4 | 5 | 380 | 4 | 0.85 |
| 57BYGH76-2804 | 1.8 | 76 | 2.8 | 1.2 | 4.3 | 1.8 | 6 | 440 | 4 | 1.05 |
| 57BYGH76-4204 | 1.8 | 76 | 4.2 | 0.55 | 1.8 | 1.8 | 6 | 440 | 4 | 1.05 |
| 57BYGH80-4204 | 1.8 | 80 | 4.2 | 0.6 | 2.2 | 2.0 | 7 | 500 | 4 | 1.1 |
| 57BYGH83-4204 | 1.8 | 83 | 4.2 | 0.65 | 2.5 | 2.2 | 8 | 560 | 4 | 1.2 |
| 57BYGH100-4204 | 1.8 | 100 | 4.2 | 0.75 | 2.9 | 2.5 | 10 | 680 | 4 | 1.5 |
| 57BYGH112-3004 | 1.8 | 112 | 3 | 1.6 | 6.8 | 2.8 | 12 | 800 | 4 | 1.7 |
| 57BYGH112-4204 | 1.8 | 112 | 4.2 | 0.85 | 3.8 | 2.8 | 12 | 800 | 4 | 1.7 |
| The above are only representative products, derivatives can be made according to customer requirements | ||||||||||

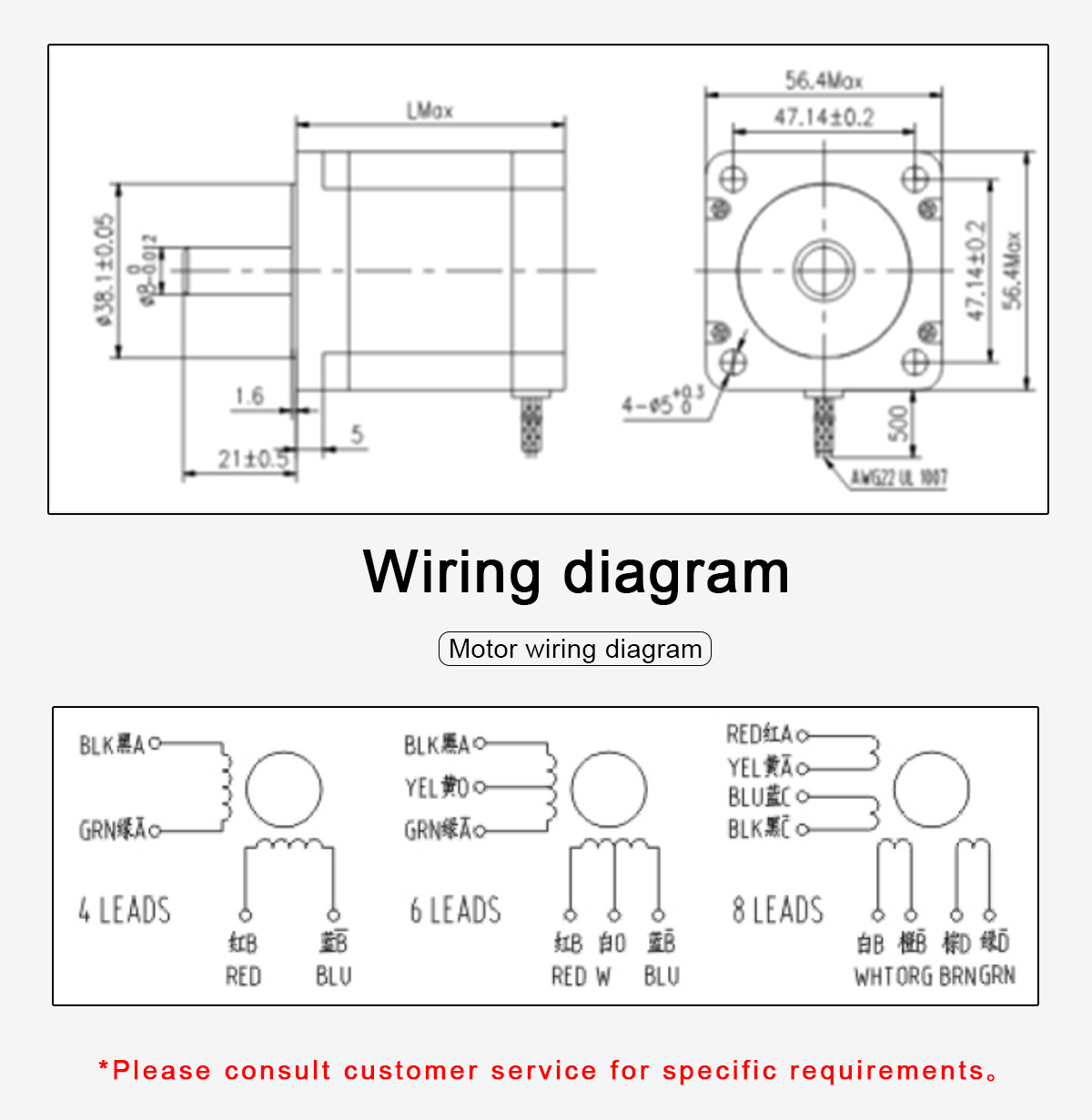

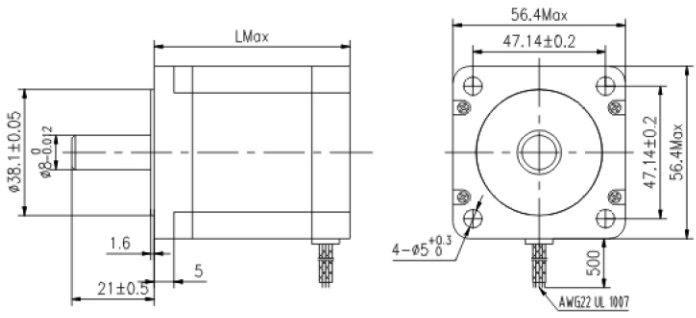

Mechanical Diemensions
Wiring diagram
Palabras clave: NEMA 23 STEPPER MOTORS unipolar 1.8deg 0.6Nm(84.97oz.in) 0.44A 11.88V 6 wires
