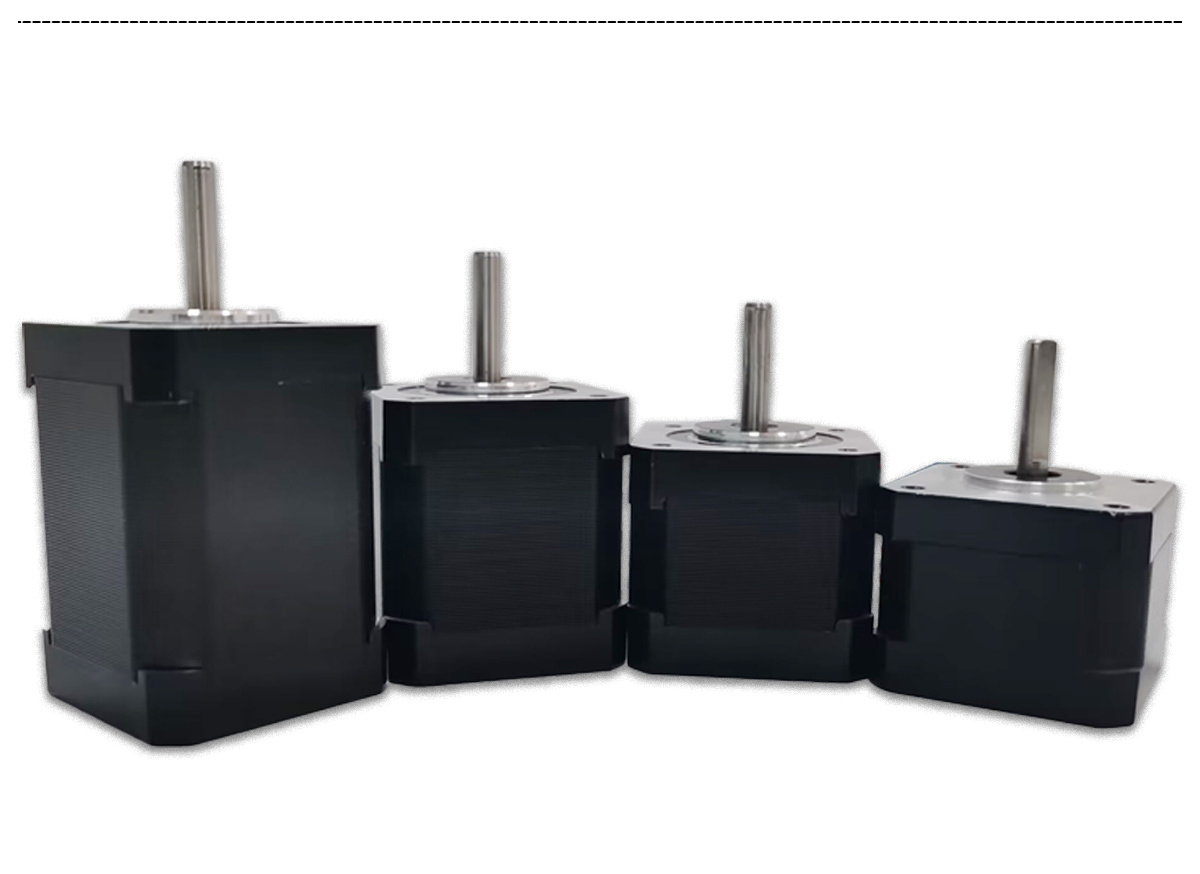

NEMA 17 STEPPER MOTOR SETS FOR CNC SEWING MACHINE
Working environment: -25℃~+55℃
Insulation resistance: 100Ωmin, 500VDC
Axial clearance: 0.08Max
Radial runout: 0.02Max
Temperature rise: 85℃Max
Insulation strength: B
Insulation resistance: 100Ωmin, 500VDC
Axial clearance: 0.08Max
Radial runout: 0.02Max
Temperature rise: 85℃Max
Insulation strength: B

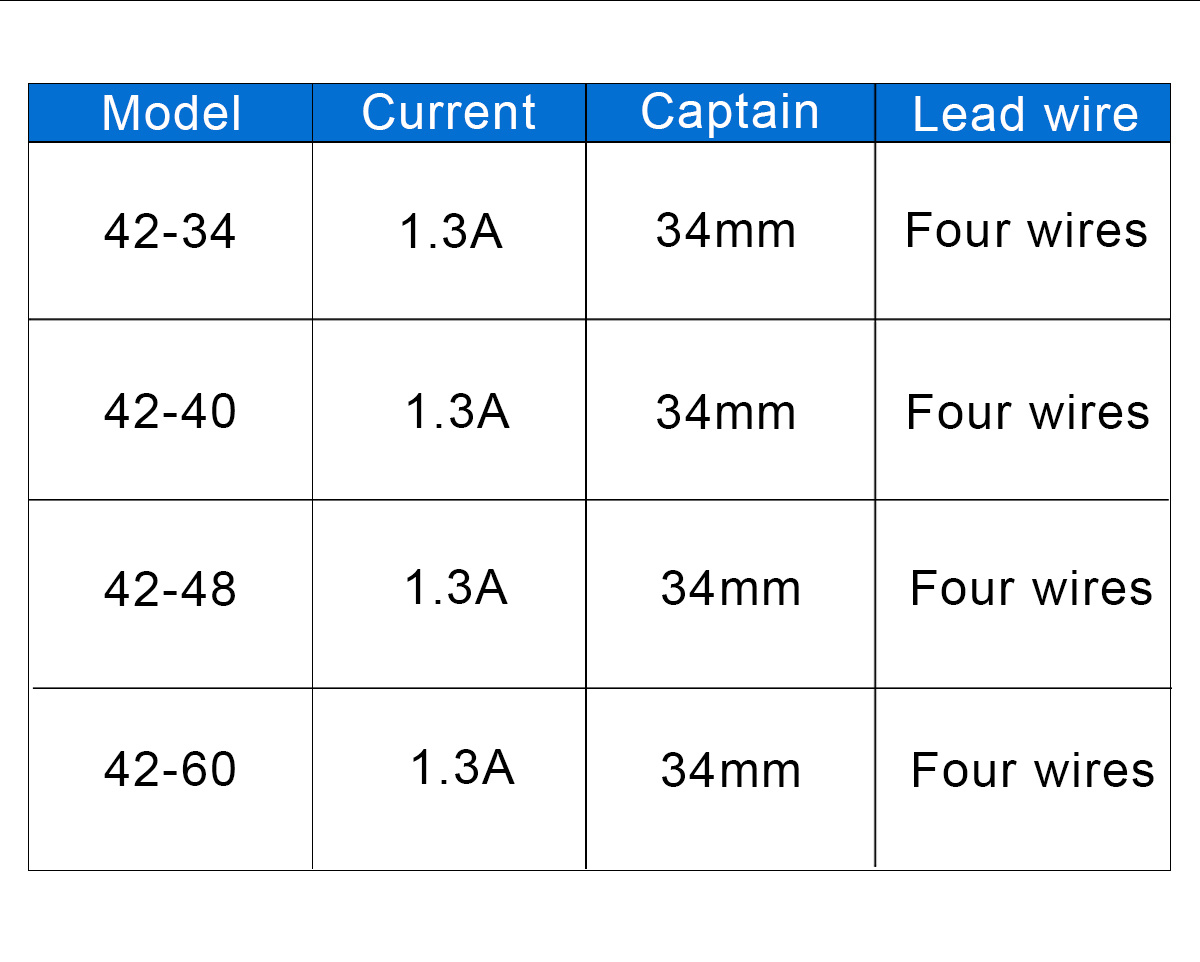

Electrical specifications
| Model | Step angle | Fuselage length | Current | Resistance | Inductors | Static moment | Positioning torque | Rotational inertia | Number of lead wires | Weight |
| (°) | L(mm) | (A) | (Ω) | (mH) | (N·m) | (N·cm) | (g·c㎡) | (NO.) | (g) | |
| 42BYGM28-0604 | 0.9 | 28 | 0.6 | 8 | 10 | 0.11 | 1.4 | 30 | 4 | 0.15 |
| 42BYGM34-0406 | 0.9 | 34 | 0.4 | 10 | 9.5 | 0.2 | 1.6 | 34 | 6 | 0.22 |
| 42BYGM34-1304 | 0.9 | 34 | 1.3 | 2.1 | 4.2 | 0.28 | 1.6 | 34 | 4 | 0.22 |
| 42BYGM40-0406 | 0.9 | 40 | 0.4 | 30 | 30 | 0.28 | 2.2 | 54 | 6 | 0.28 |
| 42BYGM40-1206 | 0.9 | 40 | 1.2 | 3.3 | 4 | 0.28 | 2.2 | 54 | 6 | 0.28 |
| 42BYGM40-1704 | 0.9 | 40 | 1.7 | 1.65 | 4 | 0.4 | 2.2 | 54 | 4 | 0.28 |
| 42BYGM48-0406 | 0.9 | 48 | 0.4 | 30 | 38 | 0.34 | 2.6 | 68 | 6 | 0.35 |
| 42BYGM48-1206 | 0.9 | 48 | 1.2 | 3.3 | 4 | 0.34 | 2.6 | 68 | 6 | 0.35 |
| 42BYGM48-1704 | 0.9 | 48 | 1.7 | 1.8 | 3.2 | 0.52 | 2.6 | 68 | 4 | 0.35 |
| 42BYGM48-2304 | 0.9 | 48 | 2.3 | 1.2 | 1.6 | 0.52 | 2.6 | 68 | 4 | 0.35 |
*The above are only representative products, derivative products can be made according to customer requirements!

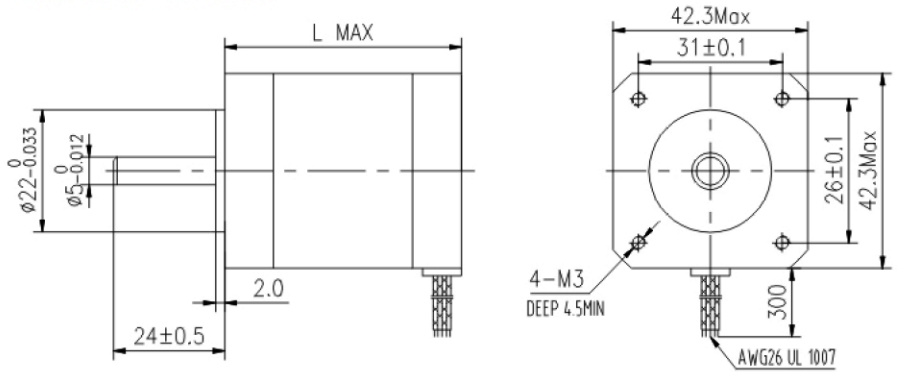

Mechanical Diemensions

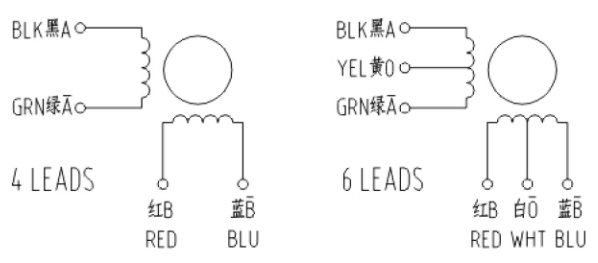

Wiring diagram
